PRODUCT HIGHLIGHTS
APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
FEATURE
· LC-LC connectors;
· For pigtails, one side of LC only;
· Simplex or Duplex version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
OVERVIEW

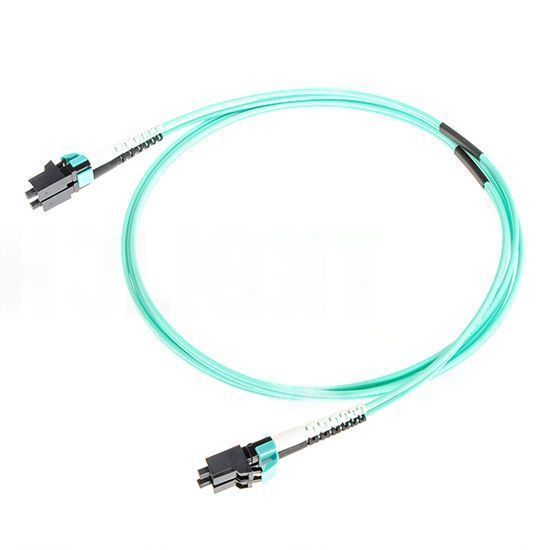

High Quality and Cost-effective 50/125μm OM3 Multimode Fiber Optic Cable
The 50/125um OM3 multimode fiber optic cable is suitable for 10GBase-SR, 10GBase-LRM, Faster Ethernet and 40/100Gb applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant and cable is optically tested for insertion loss to ensure high quality.
HOLIGHT also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
| Connector | LC to LC | Jacket OD | 2.0mm |
| Fiber Mode | 50/125μm OM3 | Jacket Color | Aqua |
| Polish | UPC to UPC | Wavelength | 850/1300nm |
| Fiber Type | Duplex | Jacket Material | LSZH / PVC / OFNP |
| Insertion loss | ≤0.3dB | Attenuation at 850nm | 3.0 dB/km |
| Return loss | ≥30dB | Attenuation at 1300nm | 1.0 dB/km |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Minimum Bend Radius | 30 mm |
Quality Certification
Quality and standards are the foundation of HOLIGHT. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
HOLIGHT has passed many quality system verification, like CE, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
High Quality Fiber Optic Cable Guarantee
Our Test Assured Program Take a look at our fiber patch cable test program and see what truly sets us apart
