PRODUCT HIGHLIGHTS
|
Product Name |

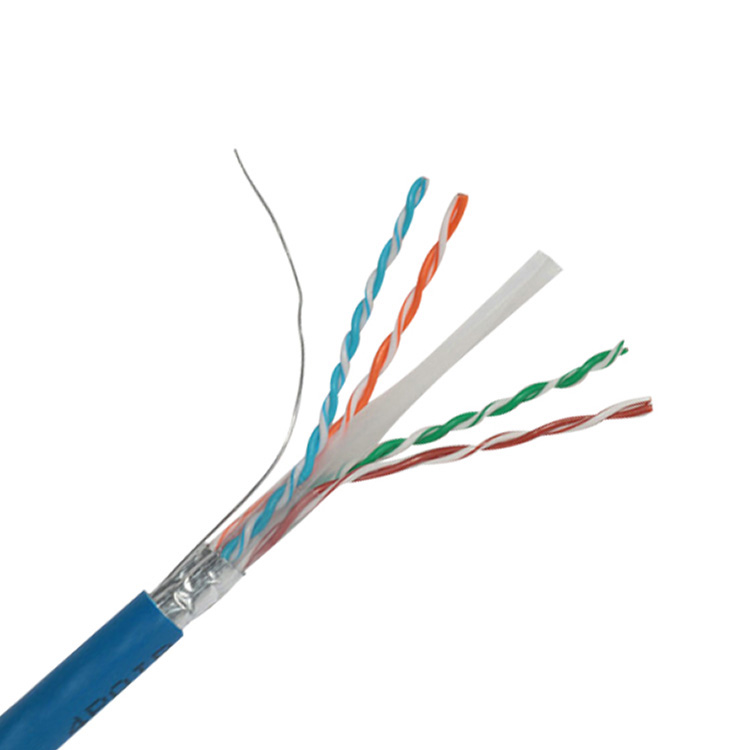

SHIELDED TWISTED PAIR MULTI CORE CAT6 STP CABLE |
|
|
Inner Conductor |
Material |
CCS/ CCA/ CCAG/ CCC/ BC |
|
Diameter |
0.56mm ± 0.01mm ( 23AWG ) |
|
|
Insulation ( Dielectric ) |
Material |
Color-coded PE (Polyethylene) |
|
Thickness |
≥ 0.21mm |
|
|
Diameter |
1.03mm ± 0.01mm |
|
|
Cross Separator |
Material |
Plastic |
|
Shielded Layer |
Material |
Al Foil |
|
Braided |
Material |
CCA, Aluminum, Copper, TC and so on |
|
Type |
32, 48, 64, 80, 96, 112, 128, 144 |
|
|
Diameter |
0.08mm, 0.10mm, 0.12mm |
|
|
Twisted Pair |
N/A |
Pair 1: Blue, White/ Blue |
|
Pair 2: Orange, White/ Orange |
||
|
Pair 3: Green, White/ Green |
||
|
Pair 4: Brown, White/ Brown |
||
|
Outer Jacket |
Material |
New PVC (Rip code, Optional) |
|
Thickness |
≥ 0.65mm |
|
|
Nominal O.D |
6.80mm ± 0.10mm |
|
|
Reference Standard |
Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard |
|
|
Rated Temperature |
-20℃ to +70℃ |
|
|
Supports Transmission |
Digital and analogue voice, data and video signal |
|
